Standard Inclusions

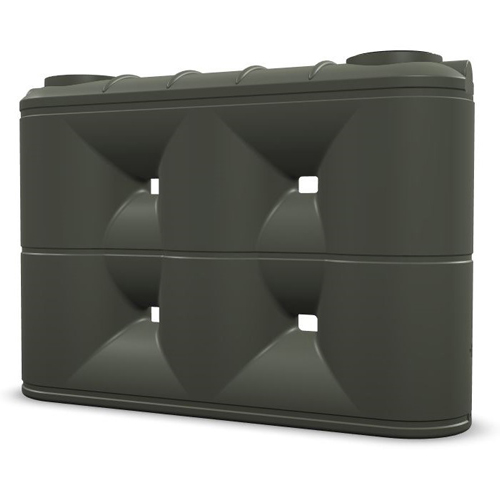

Slimline Tank Specifications
Inlet
The inlet (fitted with a leaf strainer) is located at one end of the tank.
Outlet
A 25mm sealed brass outlet is moulded into both ends of the tank at ankle height to enable you to attach the ball valve / pump according to your requirements.
A 25mm brass outlet is also moulded into the tank at bucket height at the opposite end as the inlet (optional – attach a brass tap here for only $16).
Overflow
Overflows are moulded into the tank at the top of each end (attach gutter flange / Mozzie Stoppa according to your requirements)
Slimline Tank Profile & Inclusions
Included Fittings
25mm Ball Valve
Leaf Strainer
90mm Gutter Flange
Mozzie Stoppa
Joining two or more tanks together is easy with the use of flexible coupling (made to suit your required length, price on application) and an additional 25mm ball valve ($25) to connect to a pump.
All Water Tanks R Us made Poly Tanks are made with 100% Polyethylene food grade material and come with a 10 year replacement warranty.
Water Tank Colour Chart
Site Preparation and Installation Information
- Ensure that the area chosen is stable original ground and not filling soil.
- All Water Tanks R Us tanks must be on a level base of concrete 100mm thick with a minimum strength 25m.p.a. and one layer of F72 reinforcement.
- Concrete must extend a minimum of 30mm outside of the tank perimeter of the tank.
- Crusher dust may be used but must be a minimum of 75mm thick, compacted and the outside edge must extend a minimum of 30mm outside of the tank’s perimeter with edges concreted so the tank cannot be undermined.
- All tanks come complete with a ball valve, stainless steel mesh strainer and a tank overflow fitting.
- Water Tanks R Us recommends a professional tank installer or plumber should install your tank.
- Polyethylene tanks will expand when filled. Allowance for expansion is required when plumbing work is carried out.
- Clean leaves & debris from strainer on a regular basis.
