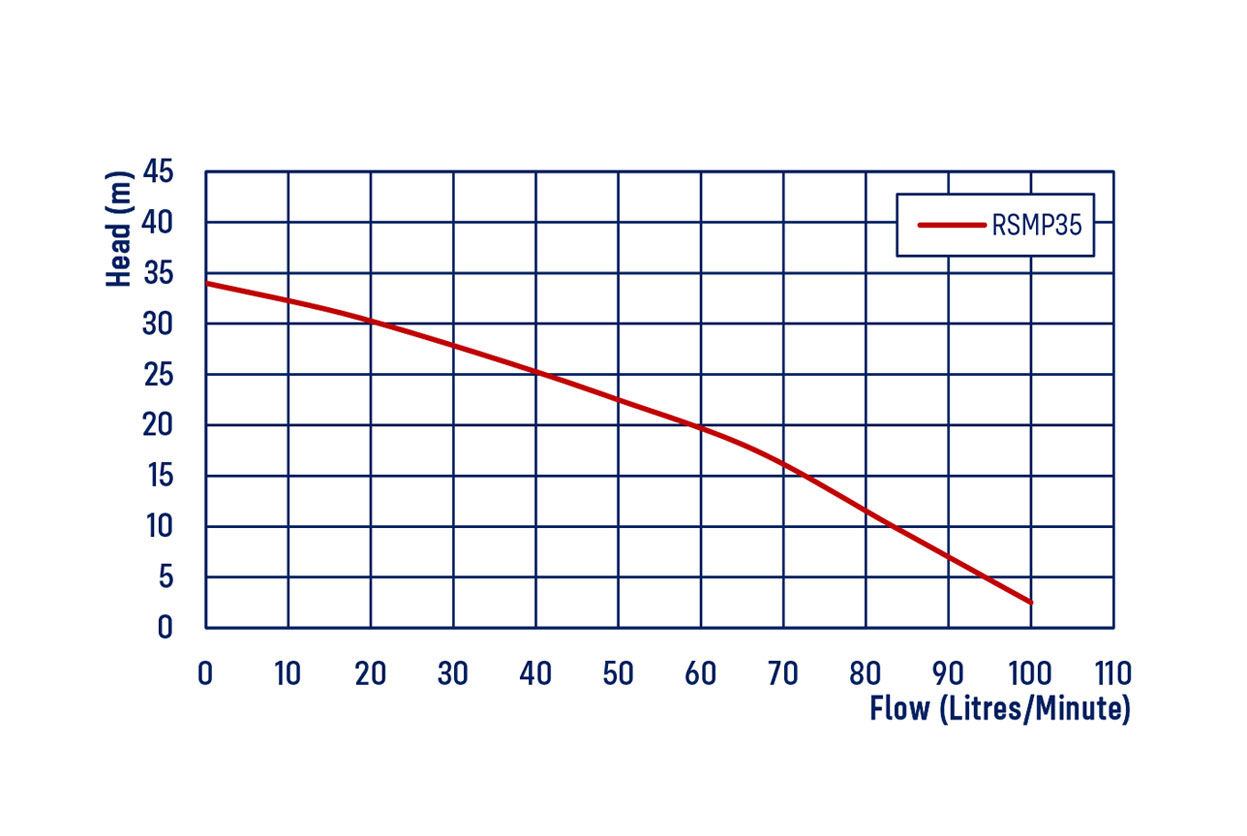

| CODE | MODEL | POWER 230-240V | RATED | MAXIMUM | CABLE LENGTH | NO. OF TAPS | INLET / OUTLET | SIZE L x W x H (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AMPS | P1 (kW) | P2 (kW) | FLOW (L/min) | HEAD (m) | FLOW (L/min) | HEAD (m) | |||||
| 19771 | RSMP35 | 3.7 | 0.87 | 0.60 | 30 | 28 | 105 | 35 | 10m | 4 – 6 | 25mm |

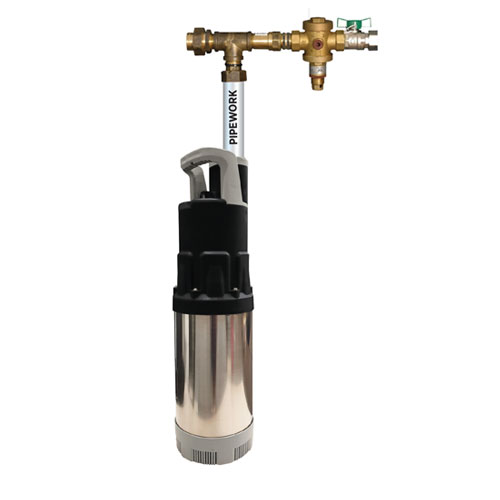

Submersible Pump RSMP Series
The Submersible Multistage Pressure Pump with integral controller, specifically designed for fast and easy installation. This system is suitable for underground tanks and best suited for supply to toilet, laundry and garden taps/outlets.
Applications
- Domestic toilet & laundry
- House / cabin / granny flat
- Small commercial / industrial*
- Garden irrigation*
- Toilet blocks (up to 6 fixtures)*
- Construction / mine site offices*
- Underground & Slimline tanks**Check specifications required
Features and Benefits
- Watermark approved componentry
- Automatic alternation between rain water and town supply
- Hydraulic change-over for constant water supply
- Pump has dry-run protection to prevent damage to pump
- Automatically checks for rainwater so you don’t need to intervene.
- Quick and easy to install
Construction
- Grade 304 Stainless Steel
- Outer Casing
- PPO Impellers & diffusers
- Stainless steel Grade 304
- Motor Shaft
- Plastic Pump Base and Discharge Body

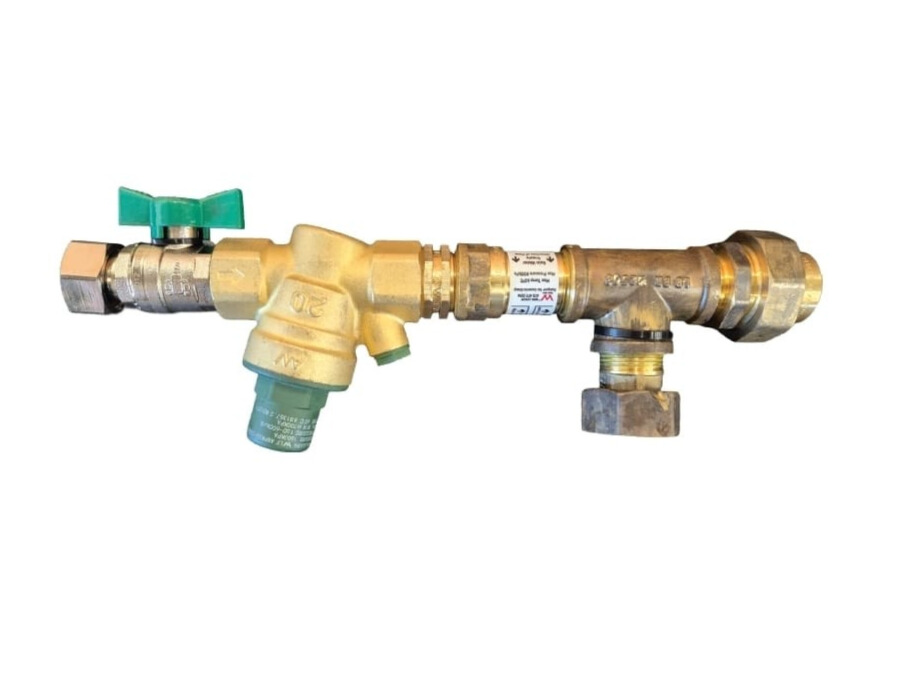

- Brass change-over valve system
